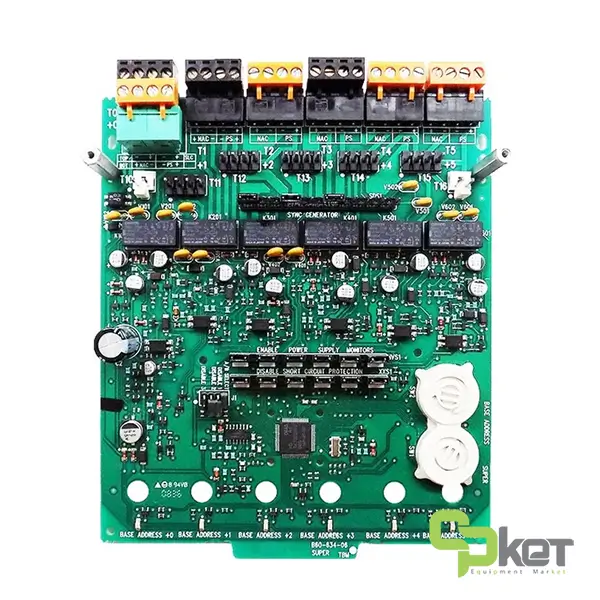

ماژول کنترل آدرس پذیر شش کاناله نوتیفایر مدل XP6-C
Notifier Addressable Six Circuit Supervised Control Module - XP6-C
|
Model
(مدل) |
XP6-C | ||
|
Operating Voltage
(ولتاژ عملکرد) |
11 to 30 VDC | ||
|
Alarm Indicator
(نمایشگر هشدار) |
LED | ||
|
Alarm Current
(جریان در حالت هشدار) |
35 mA | ||
|
Quiescent Current
(جریان خاموشی) |
2.25 mA | ||
|
Sounder Circuit Current
(جریان مدار آژیر) |
3.0 A @ 30 VDC (Resistive, non-coded) ,2.0 A @ 30 VDC (Resistive, coded) ,1.0 A @ 30 VDC (Inductive, coded, L/R=2ms) ,0.5 A @ 30 VDC (Inductive, coded, L/R=5ms) ,0.9 A @ 70.7 VAC (UL only, resistive, non-coded) ,0.7 A @ 70.7 VAC (UL only, inductive PF=0.35, non-coded) | ||
|
Communication Protocol
(پروتکل ارتباطی) |
FlashScan ,CLIP | ||
|
Operating Temperature
(دمای قابل تحمل) |
UL: 0°C to 49°C ,EN54: -10°C to +55°C | ||
|
Operating Humidity
(رطوبت قابل تحمل) |
UL: 10% to 85% noncondensing ,EN54: 10% to 93% noncondensing | ||
|
Certifications
(گواهینامهها) |
UL ,FM ,CSFM ,FDNY | ||
|
Manufacture
(سازنده) |
Notifier |
