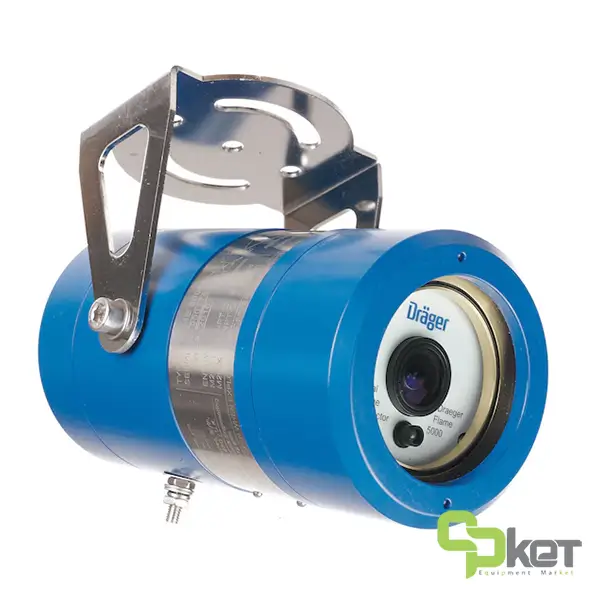

دتکتور شعله ضد انفجار دراگر مدل Flame 5000
Drager Explosion Proof Flame Detector - Flame 5000
|
Model
(مدل) |
Flame 5000 | ||
|
Part Number
(شماره قطعه) |
420 93 07 | ||
|
Sensor Type
(نوع سنسور) |
Color imaging based visual flame detector | ||
|
Response Time
(زمان پاسخ دهی) |
4 seconds, typical; configurable up to 30 seconds | ||
|
Sensitivity Ranges
(بازه حساسیت) |
0.1 m2 gasoline fire at 44 m, (1 sq. ft fire at 144 ft) | ||
|
Field of View
(زاویه دید) |
Horizontal 90° | ||
|
Operating Voltage
(ولتاژ عملکرد) |
18 to 30 VDC | ||
|
Power Consumption
(توان مصرفی) |
6 W | ||
|
Communication Protocol
(پروتکل ارتباطی) |
RS485 | ||
|
Output
(خروجی) |
0–20 mA or 2 relays (fault & alarm), ratings: 125VAC 0.5A / 30VDC 2A (optional) | ||
|
Operating Temperature
(دمای قابل تحمل) |
60 °C to +85 °C, -76 °F to +185 °F | ||
|
Alarm Indicator
(نمایشگر هشدار) |
LED | ||
|
Ingress Protection
(حفاظت داخلی) |
IP66 | ||
|
Operating Humidity
(رطوبت قابل تحمل) |
0 to 99 %RH, non-condensing | ||
|
Housing Material
(جنس بدنه) |
Aluminum or stainless steel | ||
|
Certifications
(گواهینامهها) |
FM ,ATEX ,CFM ,IECEx | ||
|
Manufacture
(سازنده) |
Draeger |
