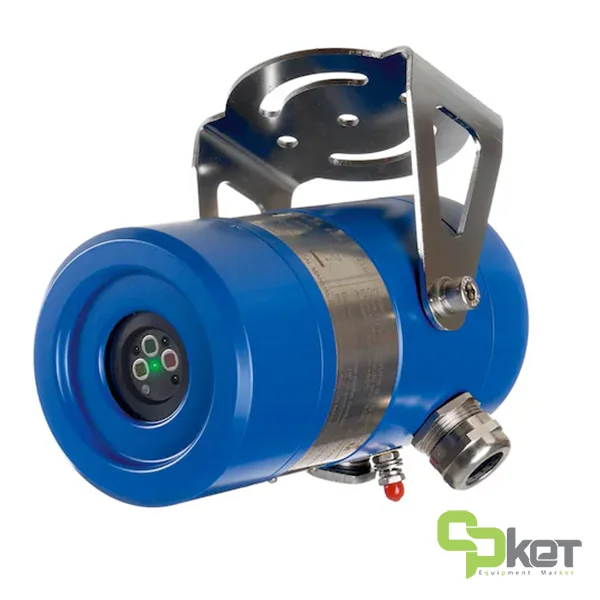

دتکتور شعله ضد انفجار دراگر مدل Flame 1500 (IR3)
Drager Explosion Proof Flame Detector - Flame 1500 (IR3)
|
Model
(مدل) |
Flame 1500 (IR3) | ||
|
Sensor Type
(نوع سنسور) |
IR3 | ||
|
Spectral Response
(طیف پاسخ دهی) |
Three wavelengths in the range from 3 μm to 8 μm | ||
|
Detection Range
(بازه سنجش) |
n-Heptane/gasoline 60 m (200 ft) ,Methanol 42 m (136 ft) ,Methane 50 m (165 ft) | ||
|
Response Time
(زمان پاسخ دهی) |
4 seconds (typical) | ||
|
Sensitivity Ranges
(بازه حساسیت) |
Low 15 m ,Medium 30 m (standard) ,High 60 m | ||
|
Field of View
(زاویه دید) |
Horizontal 90° ,vertical 90° | ||
|
Operating Voltage
(ولتاژ عملکرد) |
24 VDC nominal (18–32 VDC) | ||
|
Power Consumption
(توان مصرفی) |
Minimum 3 W / Maximum 12 W with heating | ||
|
Communication Protocol
(پروتکل ارتباطی) |
RS485 | ||
|
Output
(خروجی) |
0–20 mA + Alarm & Fault relays | ||
|
Operating Temperature
(دمای قابل تحمل) |
-60 to +85 °C (-76 to +185 °F) | ||
|
Alarm Indicator
(نمایشگر هشدار) |
LED | ||
|
Ingress Protection
(حفاظت داخلی) |
IP66 | ||
|
Housing Material
(جنس بدنه) |
Aluminium or 316 stainless steel ,powder-coated | ||
|
Certifications
(گواهینامهها) |
ATEX ,IECEx ,SIL2 ,FM/FMC | ||
|
Manufacture
(سازنده) |
Draeger |
