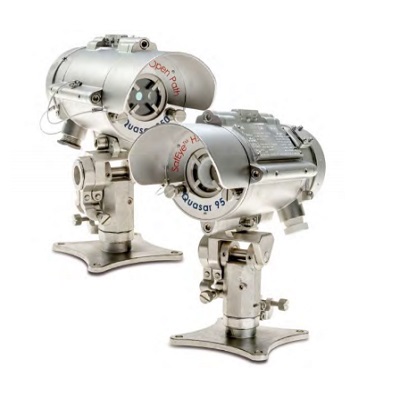

دتکتور گاز اسپکترکس SafEye Quasar 950/960 مدل QRU-B211/QTU-B111

Spectrex SafEye Quasar 950/960 Open Path Gas Detector QRU-B211/QTU-B111

Model
(مدل)
SafEye Quasar 950/960
Part Number
(شماره قطعه)
Detector:QRU-B211 , Source:QTU-B111
Sensor Type
(نوع سنسور)
Infrared
Sensor Material
(جنس محفظه سنسور)
***
Detectable Gases
(گازهای قابل سنجش)
Ammonia
Detection Range
(بازه سنجش)
17-66ft
Response Time (T90) Secs
(زمان پاسخ دهی در ثانیه)
T90≤10 sec
Path Lengths
(فاصله طولی)
5-20m
Operating Voltage
(ولتاژ عملکرد)
24VDC nominal (18-32 VDC)
Power Consumption
(توان مصرفی)
Detector: 250mA (300mA peak) , Source: 250mA (300mA Peak)
Output
(خروجی)
4-20mA Sink (source option) configuration
Communication
(نوع ارتباط)
HART , Modbus , RS485
Operating Temperature
(دمای قابل تحمل)
–67ºF to 149 ºF (–55 ºC to 65 ºC)
Ingress Protection
(حفاظت داخلی)
IP66 and IP68 per EN60529 , NEMA 250 6P
Operating Humidity
(رطوبت قابل تحمل)
Up to 95% non-condensing (withstands up to 100% RH for short periods)
Housing Material
(جنس بدنه)
Stainless Steel 316L with electro polish finish
Entries
(ورودی)
2 x M25 x 1.5 mm ISO
Certifications
(گواهینامه‌ها)
Inmetro :Ex db eb ib [ib Gb] IIB + H2 T4 Gb Ex tb IIIC T135°C Db X
Manufacture
(سازنده)
Spectrex
Manufacture
(سازنده)
Spectrex
