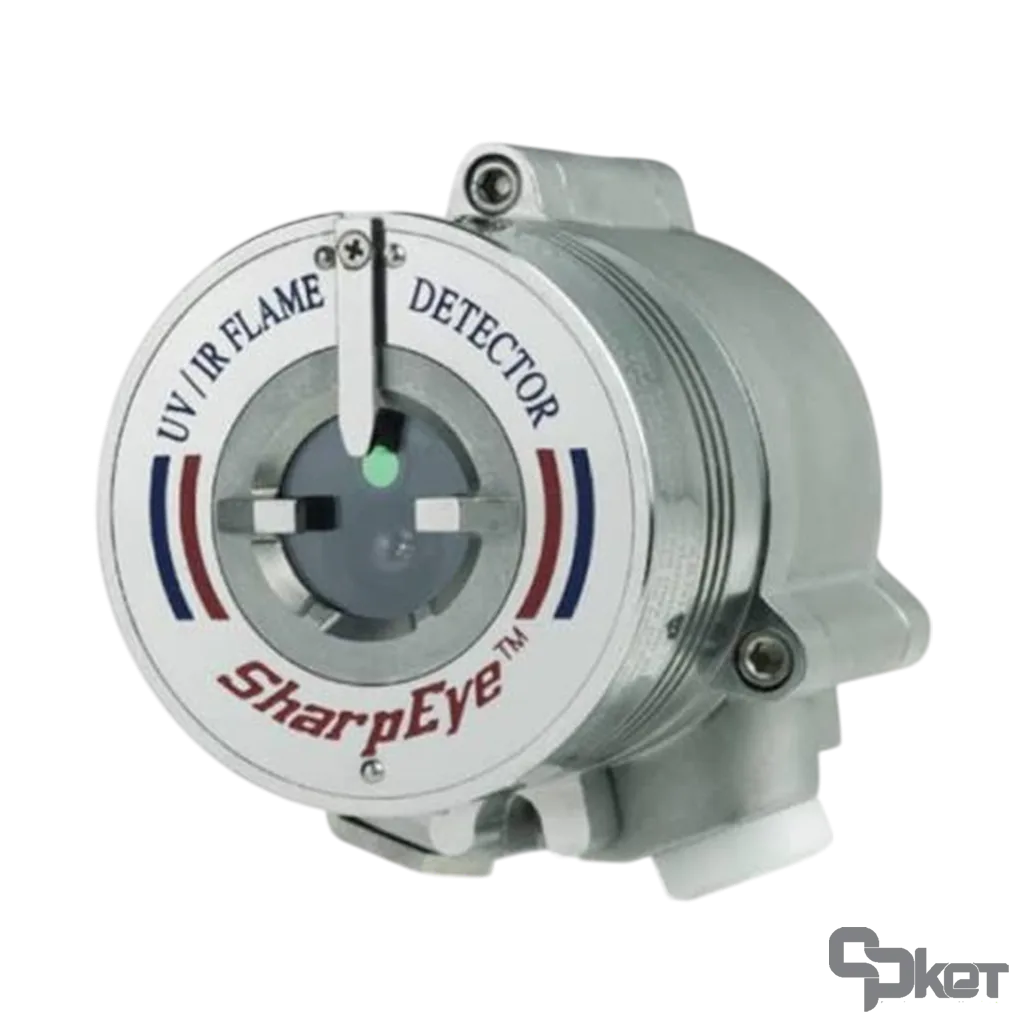

دتکتور شعله اسپکترکس UV/IR مدل 40/40L4B-511AC
Spectrex UV/IR Flame Detector 40/40L4B-511AC
|
Model
(مدل) |
40/40L4B | ||
|
Part Number
(شماره قطعه) |
40/40L4B-511AC | ||
|
Sensor Type
(نوع سنسور) |
UV/IR | ||
|
Spectral Response
(طیف پاسخ دهی) |
UV: 0.185 - 0.260 μm; IR: 4.4-4.6 μm | ||
|
Detection Range
(بازه سنجش) |
Alcohol 95% 57 / 17, Diesel Fuel 70 / 21, Gasoline 93 / 28, IPA 70 / 21, JP5 70 / 21, Kerosene 70 / 21, LPG * 60 / 18, Methane* 60 / 18, Methanol 57 / 17, n-Heptane 93 / 28, Office Paper 33/10, Polypropylene Pellets 60 / 18 | ||
|
Response Time
(زمان پاسخ دهی) |
Typically 5 seconds | ||
|
Sensitivity Ranges
(بازه حساسیت) |
1ft2 (0.1m2) n-heptane pan fire from 93ft(28m) | ||
|
Field of View
(زاویه دید) |
Horizontal 100º; Vertical 95º | ||
|
Built-in-Test (BIT)
(تست داخلی) |
Manual and Automatic BIT | ||
|
Operating Voltage
(ولتاژ عملکرد) |
24 VDC nominal (18-32 VDC) | ||
|
Power Consumption
(توان مصرفی) |
Alarm: Max. 130mA (160mA with heated window), Standby: Max. 90mA (110mA with heated window) | ||
|
Output
(خروجی) |
Relays | ||
|
Communication
(نوع ارتباط) |
RS485 | ||
|
Operating Temperature
(دمای قابل تحمل) |
'-67°F to +167ºF (-55ºC to +75ºC) | ||
|
Ingress Protection
(حفاظت داخلی) |
IP66 and IP67 per EN60529\, NEMA 250 6P | ||
|
Operating Humidity
(رطوبت قابل تحمل) |
Up to 95% non-condensing (withstands up to 100% RH for short periods) | ||
|
Entries
(ورودی) |
2 x M25 x 1.5 mm ISO | ||
|
Housing Material
(جنس بدنه) |
Heavy duty copper Free Aluminium (Less Than 1%)\, red Epoxy enamel finish (Not Available in FM Version) | ||
|
Certifications
(گواهینامه‌ها) |
(-55°C Ta +75°C), (-55°C Ta +85°C), ATEX and IECEx, Ex db eb op is IIC T4 Gb, Ex II 2 G D, Ex tb op is IIIC T106°C Db, Ex tb op is IIIC T96°C Db | ||
|
Manufacture
(سازنده) |
Spectrex | ||
|
Manufacture
(سازنده) |
Spectrex |
