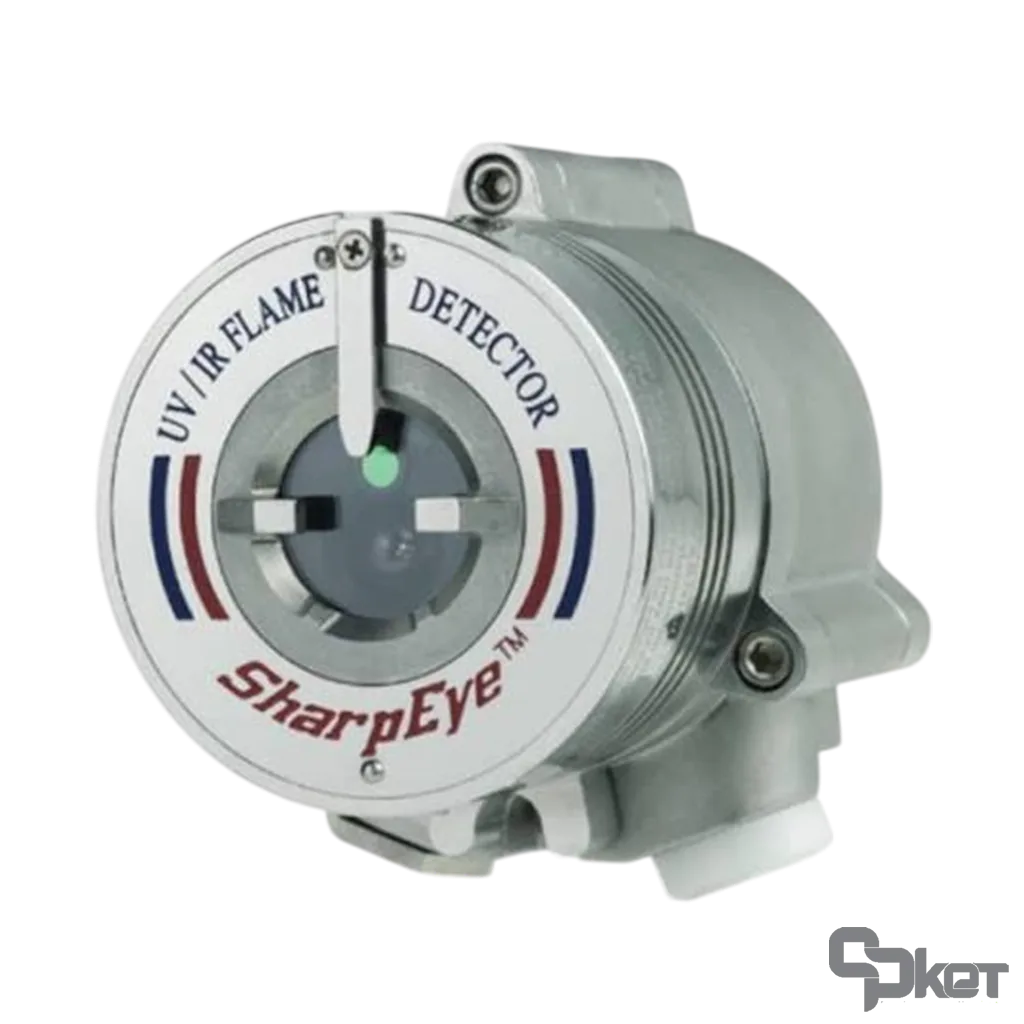

دتکتور شعله اسپکترکس UV/IR مدل 40/40L4B-211AC

دتکتور شعله اسپکترکس UV/IR مدل 40/40L4B-211AC

Spectrex UV/IR Flame Detector 40/40L4B-211AC

Model
(مدل)
40/40L4B
Part Number
(شماره قطعه)
40/40L4B-211AC
Sensor Type
(نوع سنسور)
UV/IR
Spectral Response
(طیف پاسخ دهی)
UV: 0.185 - 0.260 μm; IR: 4.4-4.6 μm
Detection Range
(بازه سنجش)
Alcohol 95% 57 / 17, Diesel Fuel 70 / 21, Gasoline 93 / 28, IPA 70 / 21, JP5 70 / 21, Kerosene 70 / 21, LPG * 60 / 18, Methane* 60 / 18, Methanol 57 / 17, n-Heptane 93 / 28, Office Paper 33/10, Polypropylene Pellets 60 / 18
Response Time
(زمان پاسخ دهی)
Typically 5 seconds
Sensitivity Ranges
(بازه حساسیت)
1ft2 (0.1m2) n-heptane pan fire from 93ft(28m)
Field of View
(زاویه دید)
Horizontal 100º; Vertical 95º
Built-in-Test (BIT)
(تست داخلی)
Manual and Automatic BIT
Operating Voltage
(ولتاژ عملکرد)
24 VDC nominal (18-32 VDC)
Power Consumption
(توان مصرفی)
Alarm: Max. 130mA (160mA with heated window), Standby: Max. 90mA (110mA with heated window)
Output
(خروجی)
4-20 mA Source, Relays
Communication
(نوع ارتباط)
Hart Protocol (Optional), RS485
Operating Temperature
(دمای قابل تحمل)
'-67°F to +167ºF (-55ºC to +75ºC)
Ingress Protection
(حفاظت داخلی)
IP66 and IP67 per EN60529\, NEMA 250 6P
Operating Humidity
(رطوبت قابل تحمل)
Up to 95% non-condensing (withstands up to 100% RH for short periods)
Housing Material
(جنس بدنه)
Heavy duty copper Free Aluminium (Less Than 1%)\, red Epoxy enamel finish (Not Available in FM Version)
Entries
(ورودی)
2 x M25 x 1.5 mm ISO
Certifications
(گواهینامه‌ها)
(-55°C Ta +75°C), (-55°C Ta +85°C), ATEX and IECEx, Ex db eb op is IIC T4 Gb, Ex II 2 G D, Ex tb op is IIIC T106°C Db, Ex tb op is IIIC T96°C Db
Manufacture
(سازنده)
Spectrex
