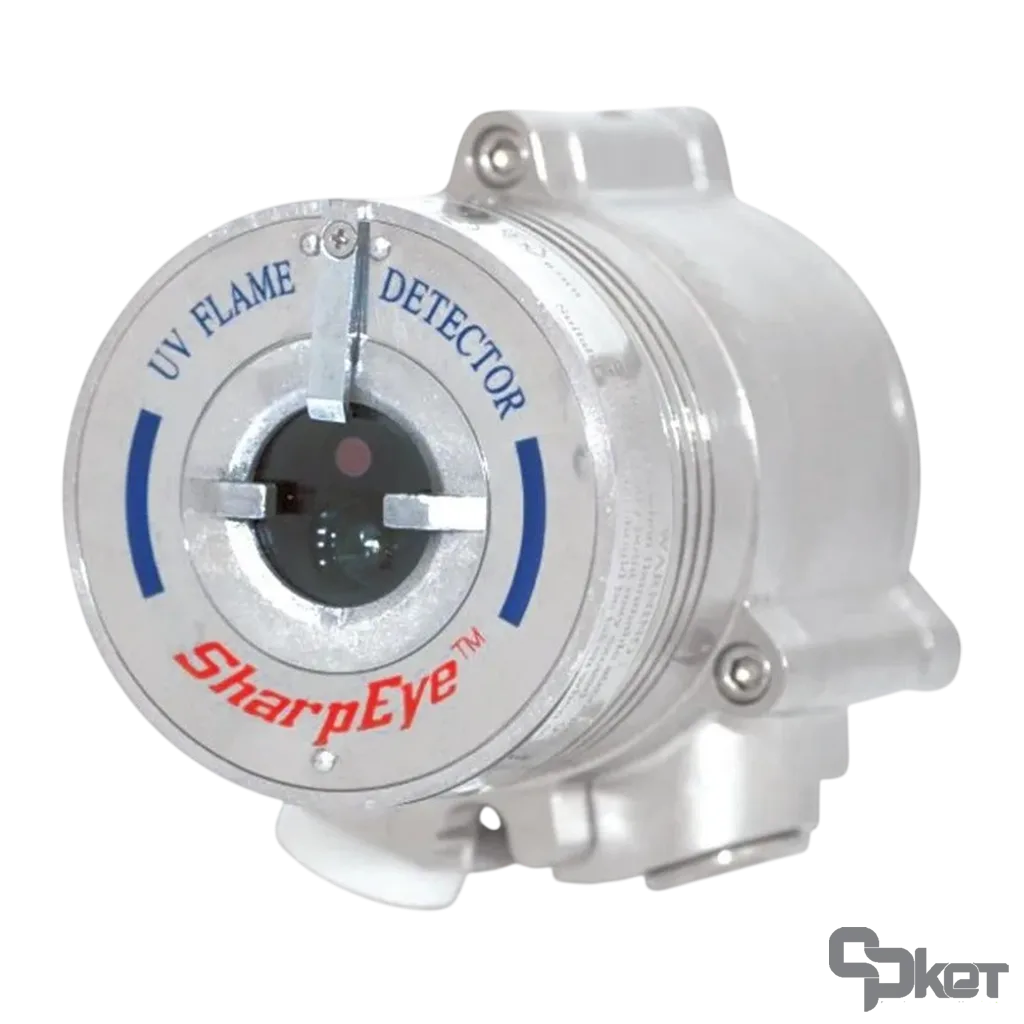

دتکتور شعله اسپکترکس UV مدل 40/40UB-511AC
Spectrex UV Flame Detector 40/40UB-511AC
|
Model
(مدل) | 40/40UB | ||
|
Part Number
(شماره قطعه) | 40/40UB-511AC | ||
|
Sensor Type
(نوع سنسور) | UV | ||
|
Spectral Response
(طیف پاسخ دهی) | UV 0.185-0.260 μm | ||
|
Detection Range
(بازه سنجش) | Diesel Fuel 37 / 11, Ethanol 95% 37 / 11, Gasoline 50 / 15, Hydrogen* 39 / 12, IPA (Isopropyl Alcohol) 37 / 11, JP5 37 / 11, Kerosene 37 / 11, LPG* 43 / 13, Methane* 43 / 13, Methanol 25 / 7.5, n-Heptane 50 / 15, Office Paper 20/6, Polypropylene Pellets 33 / 10, Silane** 22 / 7 | ||
|
Response Time
(زمان پاسخ دهی) | Typically 3 seconds | ||
|
Sensitivity Ranges
(بازه حساسیت) | 1 ft2(0.1m2) n-heptane pan fire from 15ft (5m) or 50 ft (15m) | ||
|
Field of View
(زاویه دید) | Horizontal 100º; Vertical 95º | ||
|
Built-in-Test (BIT)
(تست داخلی) | Manual and Automatic BIT | ||
|
Operating Voltage
(ولتاژ عملکرد) | 24 VDC nominal (18-32 VDC) | ||
|
Power Consumption
(توان مصرفی) | Alarm: Max. 130mA (160mA with heated window), Standby: Max. 90mA (110mA with heated window) | ||
|
Output
(خروجی) | Relays | ||
|
Communication
(نوع ارتباط) | RS485 | ||
|
Operating Temperature
(دمای قابل تحمل) | '-67°F to +167ºF (-55ºC to +75ºC) | ||
|
Ingress Protection
(حفاظت داخلی) | IP66 and IP67 per EN60529\, NEMA 250 6P | ||
|
Operating Humidity
(رطوبت قابل تحمل) | Up to 95% non-condensing (withstands up to 100% RH for short periods) | ||
|
Entries
(ورودی) | 2 x M25 x 1.5 mm ISO | ||
|
Housing Material
(جنس بدنه) | Heavy duty copper Free Aluminium (Less Than 1%)\, red Epoxy enamel finish (Not Available in FM Version) | ||
|
Certifications
(گواهینامه‌ها) | 1 Ex db eb op is IIC T4 Gb X Ex tb op is IIIC T106°C Db X (–55°C Ta +85°C), 1 Ex db eb op is IIC T4 Gb X Ex tb op is IIIC T96°C Db X (–55°C Ta +75°C), ATEX and IECEx | ||
|
Manufacture
(سازنده) | Spectrex | ||
|
Manufacture
(سازنده) | Spectrex |
