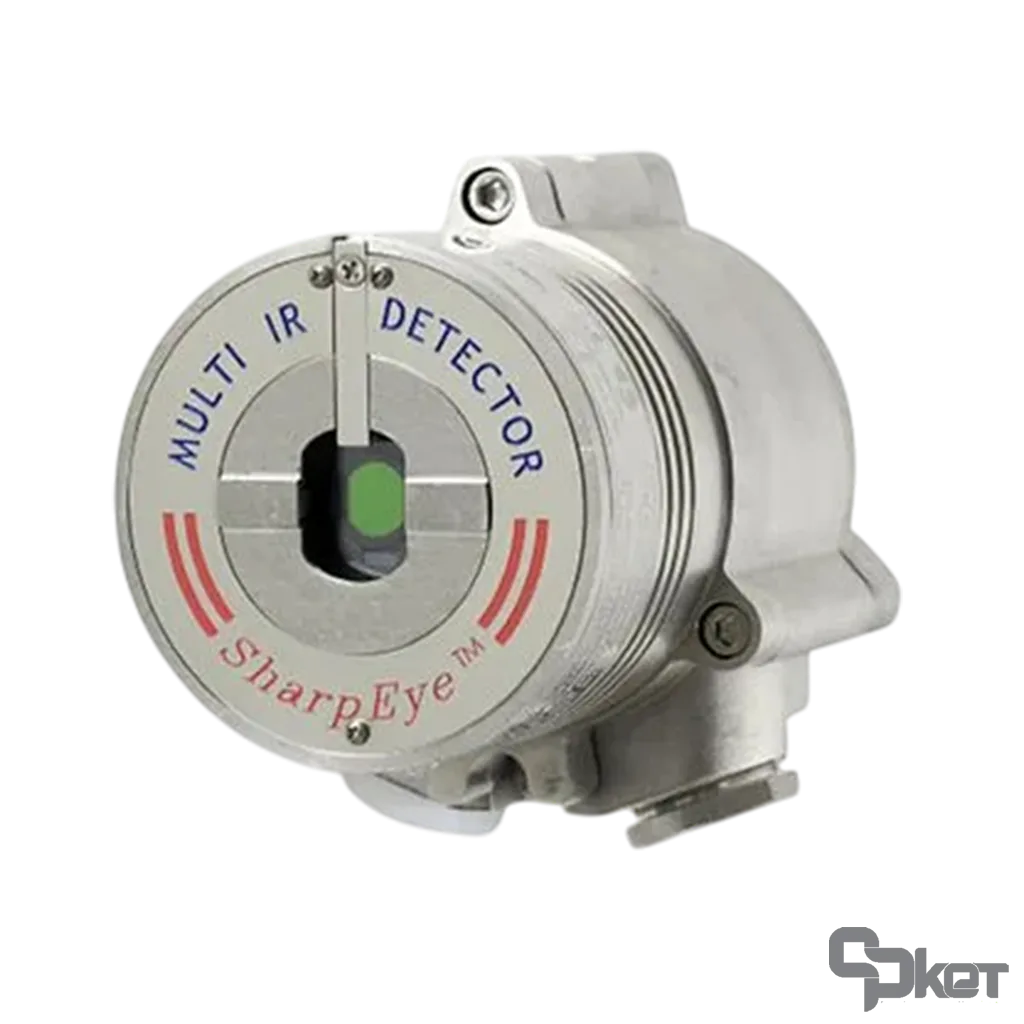

دتکتور شعله اسپکترکس Multi IR مدل 40/40M-112SF
Spectrex Multi IR Flame Detector 40/40M-112SF
|
Model
(مدل) |
40/40M | ||
|
Part Number
(شماره قطعه) |
40/40M-112SF | ||
|
Sensor Type
(نوع سنسور) |
Multi IR | ||
|
Spectral Response
(طیف پاسخ دهی) |
Multi IR Bands | ||
|
Detection Range
(بازه سنجش) |
Ammonia** 60 / 18, Diesel Fuel 150 / 45, Ethanol 95% 135 / 40, Gasoline 215 / 65, Hydrogen* 125 / 38, IPA (Isopropyl Alcohol) 135 / 40, JP5 150 / 45, Kerosene 150 / 45, LPG* 150 / 45, Methane* 150 / 45, Methanol 115 / 35, n-Heptane 215 / 65, Office Paper 82/25, Polypropylene Pellets 115 / 35, Silane** 7 / 2 | ||
|
Response Time
(زمان پاسخ دهی) |
Typically 5 seconds | ||
|
Sensitivity Ranges
(بازه حساسیت) |
n-heptane pan fire from 50 ft (15m) to 215 ft (65m) | ||
|
Field of View
(زاویه دید) |
Horizontal 70°\, Vertical 80° for Hydrogen, Horizontal 80°\, Vertical 80° for Gasoline | ||
|
Built-in-Test (BIT)
(تست داخلی) |
Manual BIT | ||
|
Operating Voltage
(ولتاژ عملکرد) |
24 VDC nominal (18-32 VDC) | ||
|
Power Consumption
(توان مصرفی) |
Alarm: Max. 130mA (160mA with heated window), Standby: Max. 90mA (110mA with heated window) | ||
|
Output
(خروجی) |
4-20 mA (Sink or Source), Relays | ||
|
Communication
(نوع ارتباط) |
Hart Protocol (Optional), RS485 | ||
|
Operating Temperature
(دمای قابل تحمل) |
'-67°F to +167ºF (-55ºC to +75ºC) | ||
|
Ingress Protection
(حفاظت داخلی) |
IP66 and IP67 per EN60529\, NEMA 250 6P | ||
|
Operating Humidity
(رطوبت قابل تحمل) |
Up to 95% non-condensing (withstands up to 100% RH for short periods) | ||
|
Entries
(ورودی) |
2 x 3/4" - 14NPT conduits | ||
|
Housing Material
(جنس بدنه) |
Stainless Steel 316L with electro polish finish | ||
|
Certifications
(گواهینامه‌ها) |
Class I\, Div 1\, Groups B\, C\, D, Class II/III Div. 1\, Groups E\, F & G | ||
|
Manufacture
(سازنده) |
Spectrex | ||
|
Manufacture
(سازنده) |
Spectrex |
