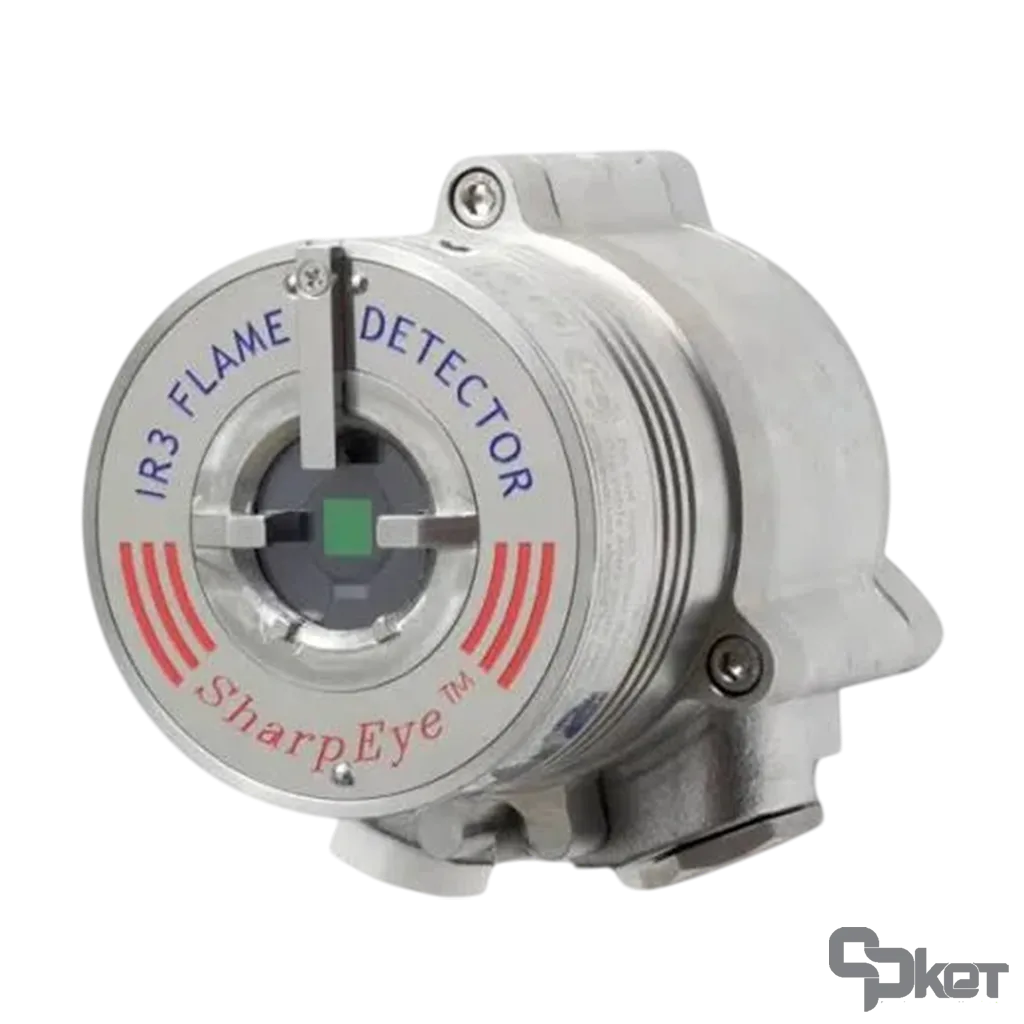

دتکتور شعله اسپکترکس IR3 مدل 40/40I-411SC

Spectrex Flame Detector IR3 40/40I-411SC

Model
(مدل)
40/40I
Part Number
(شماره قطعه)
40/40I-411SC
Sensor Type
(نوع سنسور)
IR3
Spectral Response
(طیف پاسخ دهی)
Three IR Bands
Detection Range
(بازه سنجش)
Diesel Fuel 150 / 45, Ethanol 95% 135 / 40, Gasoline 215 / 65, IPA (Isopropyl Alcohol) 135 / 40, JP5 150 / 45, Kerosene 150 / 45, LPG* 150 / 45, Methane* 150 / 45, Methanol 115 / 35, n-Heptane 215 / 65, Office Paper 83/25, Polypropylene Pellets 115 / 35
Response Time
(زمان پاسخ دهی)
Typically 5 seconds
Sensitivity Ranges
(بازه حساسیت)
n-heptane pan fire from 50 ft (15m) to 215 ft (65m)
Field of View
(زاویه دید)
Horizontal 100º; Vertical 95º
Built-in-Test (BIT)
(تست داخلی)
Manual BIT
Operating Voltage
(ولتاژ عملکرد)
24 VDC nominal (18-32 VDC)
Power Consumption
(توان مصرفی)
Alarm: Max. 130mA (160mA with heated window), Standby: Max. 90mA (110mA with heated window)
Output
(خروجی)
Relays
Communication
(نوع ارتباط)
RS485
Operating Temperature
(دمای قابل تحمل)
'-67°F to +167ºF (-55ºC to +75ºC)
Ingress Protection
(حفاظت داخلی)
IP66 and IP67 per EN60529\, NEMA 250 6P
Operating Humidity
(رطوبت قابل تحمل)
Up to 95% non-condensing (withstands up to 100% RH for short periods)
Entries
(ورودی)
2 x M25 x 1.5 mm ISO
Housing Material
(جنس بدنه)
Stainless Steel 316L with electro polish finish
Certifications
(گواهینامه‌ها)
ATEX and IECEx : Ex II 2 G D Ex db eb op is IIC T4 Gb Ex tb op is IIIC T96°C Db (-55°C Ta +75°C) Ex db eb op is IIC T4 Gb Ex tb op is IIIC T106°C Db (-55°C Ta +85°C)
Manufacture
(سازنده)
Spectrex
Manufacture
(سازنده)
Spectrex
