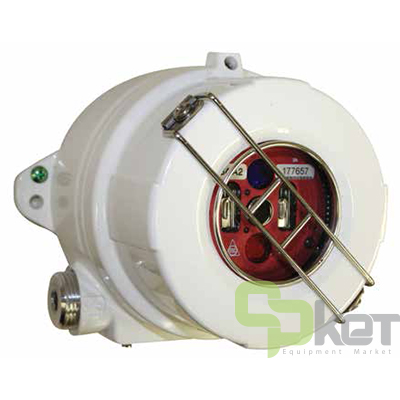

دتکتور شعله هانیول UV/IR مدل SS4-AS2-CSS-E-M
Honeywell UV/IR Flame Detector SS4-AS2-CSS-E-M
|
Model
(مدل) |
Fire Sentry SS4 | ||
|
Part Number
(شماره قطعه) |
SS4-AS2-CSS-E-M | ||
|
Sensor Type
(نوع سنسور) |
UV/IR | ||
|
Spectral Response
(طیف پاسخ دهی) |
Ultraviolet: 185 to 260 nanometres, Visible: 400 to 700 nanometres (SS4-A and SS4-AS only), Wide Band Infrared: 0.7 to 3.5 micrometres (SS4-A and SS4-AS only) | ||
|
Detection Range
(بازه سنجش) |
Adjustable between 18 m (60 ft.)\, 14 m (45 ft.)\, 9 m (30 ft\,) and 4.5 m (15 ft.) to a 0.1 m2 (1 sq. ft.) gasoline fire, Non-Hydrocarbons and Silane\, Ethanol\, Methanol\, Hydrogen & Natural Gas Fires | ||
|
Response Time
(زمان پاسخ دهی) |
2-5 seconds to 0.1 m2 (1 sq. ft.) of gasoline fire at 18 m (60 ft.) | ||
|
Sensitivity Ranges
(بازه حساسیت) |
0.1 m2 (1 sq. ft.) of gasoline fire at 18 m (60 ft.) | ||
|
Field of View
(زاویه دید) |
120 degrees cone of vision (60 degrees from on axis). | ||
|
Built-in-Test (BIT)
(تست داخلی) |
Available | ||
|
Operating Voltage
(ولتاژ عملکرد) |
24 Vdc nominal (20.5 to 34 Vdc) | ||
|
Power Consumption
(توان مصرفی) |
68 mA normal operation (relay version), 75 mA alarm condition (relay version) | ||
|
Output
(خروجی) |
4 to 20 mA, Non-Latching, Relays | ||
|
Communication
(نوع ارتباط) |
with MA420-4 4-20 mA Module for SS4 Detectors New version Factory installed | ||
|
Operating Temperature
(دمای قابل تحمل) |
'-40° to +85°C (-40° to +185°F) | ||
|
Ingress Protection
(حفاظت داخلی) |
IP66, NEMA 4X | ||
|
Operating Humidity
(رطوبت قابل تحمل) |
10 to 98% RH, non-condensing | ||
|
Entries
(ورودی) |
(2) M25 | ||
|
Housing Material
(جنس بدنه) |
Stainless steel housing available | ||
|
Certifications
(گواهینامهها) |
ATEX, cFM, FM, IECEX II 2 GD Gas: Ex d IIC T4(Ta: -40°C to + 110 °C)\, T5 (Ta: -40°C to + 75°C)\, T6 (Ta: -40°C to +60°C)) Gb Dust: Ex tb IIIC IP66 T 135°C Db | ||
|
Manufacture
(سازنده) |
Honeywell | ||
|
Manufacture
(سازنده) |
Honeywell |
