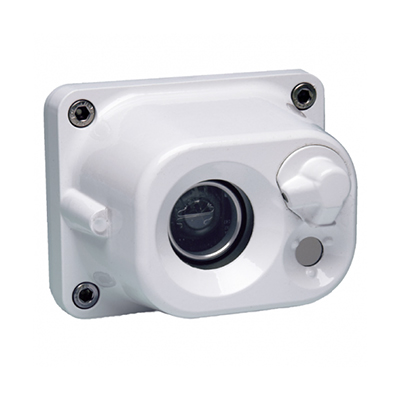

دتکتور شعله فایرفلای UV/IR مدل 860-03100
Firefly UV/IR Flame Detector 860-03100
- 0
- 0 دیدگاه کاربران
- مدل: 860
- دسته بندی : دتکتور شعله ضد انفجار
- برند : فایرفلای
دتکتور شعله فایرفلای UV/IR مدل 860-03100
|
Model
(مدل) |
860 | ||
|
Part Number
(شماره قطعه) |
860-03100 | ||
|
Sensor Type
(نوع سنسور) |
UV/IR | ||
|
Spectral Response
(طیف پاسخ دهی) |
IR: peak sensitivities of 4.4 μm, UV: peak sensitivities of 0.22 μm | ||
|
Detection Range
(بازه سنجش) |
15m, Hydrocarbon | ||
|
Response Time
(زمان پاسخ دهی) |
50 milliseconds to 5 seconds or less Depend on Fire Distance | ||
|
Sensitivity Ranges
(بازه حساسیت) |
1 square foot gasoline fire at 50 feet in 1 second, 100 square foot aviation fuel fire at 250 feet in 5 seconds or less, 4 square foot aviation fuel fire at 100 feet in 5 seconds or less, Methane plume flame at 35 feet in 1 second | ||
|
Field of View
(زاویه دید) |
120 degrees | ||
|
Built-in-Test (BIT)
(تست داخلی) |
with BIT | ||
|
Operating Voltage
(ولتاژ عملکرد) |
nominal voltage:24 VDC (ripple voltage <240mV), Voltage Range: 20 to 30 VDC | ||
|
Power Consumption
(توان مصرفی) |
alarm: 110 mA, auto and manual test:250 mA, standby: 90 mA | ||
|
Output
(خروجی) |
4 to 20 mA, Relays : fire\, trouble\, dry contacts\, hermetically sealed(latching) | ||
|
Communication
(نوع ارتباط) |
Programmable RS-485 serial output | ||
|
Operating Temperature
(دمای قابل تحمل) |
'-40° to +85°C (-40° to +185°F) | ||
|
Ingress Protection
(حفاظت داخلی) |
IP66 | ||
|
Operating Humidity
(رطوبت قابل تحمل) |
*** | ||
|
Entries
(ورودی) |
M20-1.5 (white) | ||
|
Housing Material
(جنس بدنه) |
Aluminium | ||
|
Certifications
(گواهینامه‌ها) |
ATEX, CSA, CSFM, EMC, FM, IECEx, LVD, Russian Fire Certificate, SIL2 | ||
|
Manufacture
(سازنده) |
Firefly | ||
|
Manufacture
(سازنده) |
Firefly |
