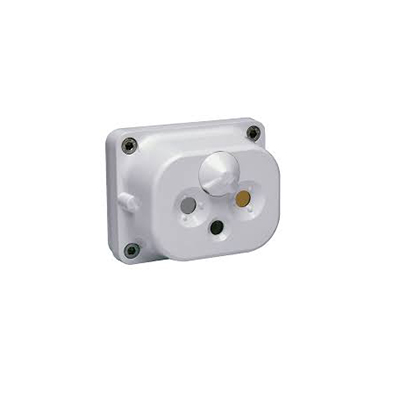

دتکتور شعله فایرفلای IR مدل 760-05110
Firefly IR Flame Detector 760-05110
|
Model
(مدل) |
760 | ||
|
Part Number
(شماره قطعه) |
760-05110 | ||
|
Sensor Type
(نوع سنسور) |
IR | ||
|
Spectral Response
(طیف پاسخ دهی) |
Infrared peak sensitivities of 2.2 μm\, 2.9 μm\, 3.7 μm\, 4.4 μm\, and 5.8 μm | ||
|
Detection Range
(بازه سنجش) |
30-60 (selectable) | ||
|
Response Time
(زمان پاسخ دهی) |
<1 second to <5 seconds Depend on Fire Distance | ||
|
Sensitivity Ranges
(بازه حساسیت) |
*** | ||
|
Field of View
(زاویه دید) |
90 degrees | ||
|
Built-in-Test (BIT)
(تست داخلی) |
Automatic | ||
|
Operating Voltage
(ولتاژ عملکرد) |
nominal voltage:24 VDC (ripple voltage <240mV), Voltage Range: 20 to 30 VDC | ||
|
Power Consumption
(توان مصرفی) |
alarm: 100 mA, auto and manual test: 160 mA, standby: 80 mA | ||
|
Output
(خروجی) |
4 to 20 mA, Relays: fire\, trouble\, dry contacts\, hermetically sealed(non-latching) | ||
|
Communication
(نوع ارتباط) |
MODBUS RS-485 serial I/O | ||
|
Operating Temperature
(دمای قابل تحمل) |
'-40° to +85°C (-40° to +185°F) | ||
|
Ingress Protection
(حفاظت داخلی) |
IP66 | ||
|
Operating Humidity
(رطوبت قابل تحمل) |
*** | ||
|
Entries
(ورودی) |
M20-1.5 (white) | ||
|
Housing Material
(جنس بدنه) |
stainless steel | ||
|
Certifications
(گواهینامه‌ها) |
ATEX, CSA, CSFM, EMC, FM, IECEx, LVD, Russian Fire Certificate, SIL2 | ||
|
Manufacture
(سازنده) |
Firefly | ||
|
Manufacture
(سازنده) |
Firefly |
