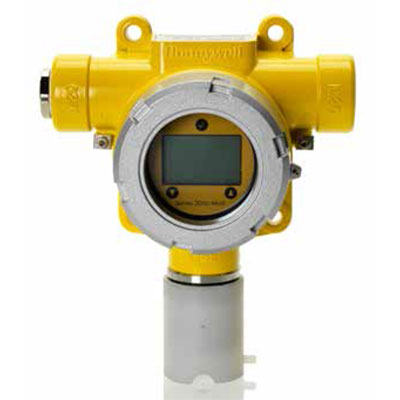

دتکتور گازهای سمی و اکسیژن هانیول مدل Series 3000 MkIII - S3KUS3
Honeywell Toxic and Oxygen Gas Detector Series 3000 MkIII - S3KUS3
|
Model
(مدل) |
Series 3000 MkIII | ||
|
Part Number
(شماره قطعه) |
S3KUS3 | ||
|
Sensor Type
(نوع سنسور) |
Electrochemical | ||
|
Sensor Housing Material
(جنس محفظه سنسور) |
316 Stainless Steel with PTFE filter | ||
|
Detectable Gases
(گازهای قابل سنجش) |
Toxic gases and oxygen | ||
|
Detection Range
(بازه سنجش) |
Depend on Sensor | ||
|
Response Time (T90) Secs
(زمان پاسخ دهی در ثانیه) |
*** | ||
|
Accuracy
(دقت) |
*** | ||
|
Operating Voltage
(ولتاژ عملکرد) |
2 wire loop powered 10Vdc (±10%) to 30Vdc (max) | ||
|
Power Consumption
(توان مصرفی) |
10Vdc (±10%) to 30Vdc (max) 22mA max. overrange | ||
|
Output
(خروجی) |
0-100% FSD 4-20mA | ||
|
Communication
(نوع ارتباط) |
*** | ||
|
Operating Temperature
(دمای قابل تحمل) |
'-40°C to +55°C (-40°F to +131°F) | ||
|
Ingress Protection
(حفاظت داخلی) |
IP66 (EN 60529)\, NEMA 4X | ||
|
Operating Humidity
(رطوبت قابل تحمل) |
Continuous 20-90% RH (non-condensing), Intermittent 0-99% RH (non-condensing) | ||
|
Entries
(ورودی) |
2 x ¾”NPT | ||
|
Housing Material
(جنس بدنه) |
316 stainless steel | ||
|
Certifications
(گواهینامه‌ها) |
UL/ULC Class I\, Divisions 1 & 2\, Groups A\, B\, C & D; Class II\, Divisions 1 & 2\, Groups E\, F & G | ||
|
Manufacture
(سازنده) |
Honeywell | ||
|
Manufacture
(سازنده) |
Honeywell |
